Metering 101

Posted on by
Reply

Light meter at “zero” means a good picture. Right?

Wrong.

Shoot something black, filling the entire viewfinder with that object, and make sure the light meter points at “zero” as you are pointing at the subject (use the viewfinder!). Take the picture.

You get this:

The histogram shows why this is bad:

A histogram of a black object should peak on the left (the dark side).

Now do it again, with the light meter pointing at –2 (minus 2):

Perfect. Look, the histogram is right for this type of scene:

The moral of this post:

  • “The meter displays zero” does not equal “this will be a good picture”. It merely means “this will be a mid-grey picture, neither dark nor light”.
  • “The meter points to minus” does not equal “this will be a bad picture”. It merely means “this will be a dark picture”.
  • “The meter points to minus” does not equal “this will be a bad picture”. It merely means “this will be a dark picture”.

And there you have it. Now you understand the camera’s built-in light meter.











No Meter? No Problem

Posted on by
Reply

In studio shoots, you use a flash meter.

But if you do not have one, can you do it? Sure you can. Here’s a trick:

  1. Set up your lights. Guess the light’s power setting.
  2. Get a grey card, and hold it in the exact spot where your subject will be, aimed half way between the light and the camera, as your model may be.
  3. Set focus to manual (we are worried here about exposure, not focus!)
  4. Fill the viewfinder entirely with the gray card (be sure not to block the light)
  5. Click.

Now review the pictures. Press INFO or DISP, or hit UP/Down, until you see the view that includes the histogram.

Now here’s the trick. A good picture has the histogram peak (or peaks) in the centre. So if you see this, you are ok:

What if you see this, a histogram on the left side:

That means you are underexposing. You need to turn up the flash power and try again:

And if you see this, the histogram on the right side:

The histogram is on the right; you are overexposing: turn down the flash power, wait a few seconds so it can dump its excess charge, and try again.

As soon as you are in the centre, take a real shot and check – you should be OK. And you metered it – and all without a light meter!



Flash Meter

Posted on by
5

If you want to do “studio type” shooting, set your flash power manually. On strobes you have to do it that way; on speedlights you can. Then use a flash meter.

How? Here’s how.

  1. Set your camera to the desired settings. For instance, 100 ISO, 1/125th second, and f/8. These are pretty typical studio settings.
  2. Verify that a shot taken like this without the flash is all black. That means ambient light will play no role. If not, go to 1/200th second.
  3. Now set up your flash or flashes. Set the power to, say, quarter power for a start – or whatever you think might be roughly right. With experience, you will get this just about right.
  4. Holding down the the MODE button, set your meter to flash metering mode (the lightning symbol; not the sun symbol, which is ambient metering). Your meter now reacts only to flash.
  5. Set the meter to 100 ISO and to 1/125th second (if those are your desired values).
  6. Hold the meter, with the white dome extended, where the subject will be.
  7. Reset the meter with the side button – it now reads “0” for aperture.
  8. Fire the flashes.
  9. Read the value. If the value is higher than f/8 (eg f/11), reduce the flash power or move the flashes away. If the meter reads lower (eg f/4), then increase the power or move the flashes closer.
  10. Repeat steps 7-9 until the meter says f/8.

That is how you meter a studio, type shot like the one above. I usually meter each light separately and allow for that (e.g. two lights that both say f/5.6 will give you a total of f/8, if light from both hits the subject.).



Light Meters Are Old Hat. Not.

Posted on by
Reply

Not! A light meter is an indispensable tool if you want to ace your exposures first time.

Take this scene (taken, incidentally, amidst a whole bunch of naked people):

That meter is well exposed. Perfectly, in fact. Values were 100 ISO, f/5.6 at 1/50th second.

How? By reading the values off the incident light meter (a meter you hold where the subject will be):

  1. Set the meter to ambient (not flash) metering
  2. Move the ball out
  3. Select the camera’s ISO and the aperture you want
  4. Hold the meter where the subject will be.
  5. Click and read the value for shutter.
  6. Set those values on your camera
  7. Click.

With the camera’s built-in light meter, however, the exposure came out like this, since the light background was also read by the meter:

That’s nice for the background, but if the meter is the subject, this exposure is all wrong – 2 stops too dark (the camera thought 1/200th was the correct shutter speed).  You would now have to adjust the exposure manually, or instead aim your camera, set to spot metering, at a gray card held there. Which is less convenient.

And that is why light meters are far from old hat. Pros use them all the time, even as ambient light meters as here.



Your light meter is not perfect

Posted on by
2

Your camera’s light meter is a reflected light meter.

Here’s how it works. And you need to simply accept and remember the following:

The in-camera light meter is designed to give a good reading when aimed at a mid-gray (“18% grey”) subject.

By implication, this means that when you aim at a non-midtone subject (like a dark subject or a light subject) the image will be incorrectly exposed.

In other words, because the camera “thinks” that it is looking at mid-grey it will try to render the subject as mid-grey.

One solution is to set your exposure manually while looking at a grey card; then using that exposure for your subsequent pictures taken in that light. That way I get pictures that are right regardless of the subject’s brightness.

Like these two taken at yesterday’s Sheridan College class, of two of my students:

[1] Darker subject, coat, camera:

[2] NBow a lighter subject, dress, wall:

Both were correct at the metered settings of 1/125th second, f/2.8, at 800 ISO. Which I measured off a gray card!



Light meter know-how

Posted on by
3

If you are a photographer, you will need to use a light meter sooner or later. Like in studios, when shooting flash, or when shooting outdoors in mixed light. Or for when you want it accurate. Light meters, like my Sekonic L-358, are invaluable.

But light meters are not perfect. They can vary between modes, between measurements, and between light meters. Even between ISO settings, or times of day.

The good news: modern light meters can be calibrated, i.e. adjusted, when necessary. The bad news: this is sometimes a little similar to black magic.

If you doubt your meter’s accuracy, here is what I would suggest you do:

  1. Set your camera to aperture mode, f/5.6, 100 ISO
  2. Filling your entire viewfinder, shoot a grey card, evenly lit by diffuse daylight. Avoid reflections. Avoid standing in the light (d’oh).
  3. Check if the histogram is neutral in color (Red, Green and Blue channels, if you can display those, are equally bright).
  4. Now check if the histogram is in the centre. If not, adjust the exposure using exposure compensation, until it is in the middle.

You should now see something like this on the back of your camera:

If instead you see a histogram like the one below, the image is too dark – use + (plus) exposure compensation:

If you see the type of histogram below here instead, then the image is too light – use “-” (minus) exposure compensation:

So. Done? Now repeat the process until this is right.

Now that you have adjusted the exposure to get the histogram into the centre, read the shutter speed you now achieved.

Now:

  1. Set your light meter to f/5.6 and 100 ISO.
  2. Dome extended, put it on the grey card.
  3. Without blocking the light, measure the light.

If your light meter indicates the same shutter speed as you got on your camera,you are good. If it indicates something else, you may need to calibrate your meter.

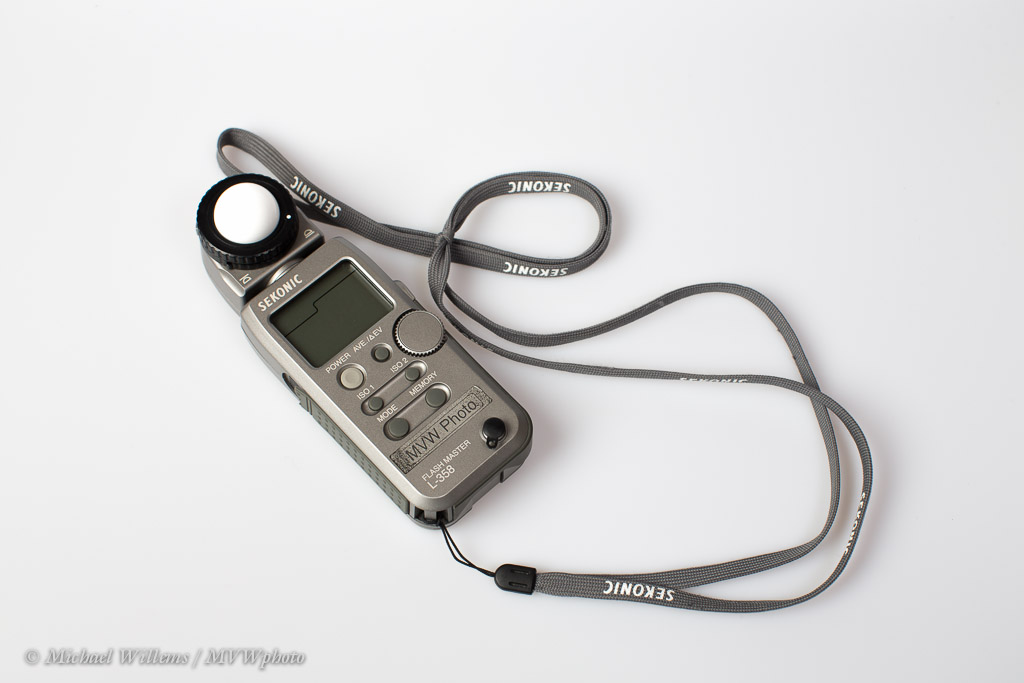

On my Sekonix, this is done by pressing ISO1 and ISO2 together while you turn on the meter – and keeping them pressed. You can now adjust the meter, + or – as needed, then repeat your measurement. Repeat this until you see the same time on your meter that you saw on the camera before.

Now, take some shots metered with your meter, in various light intensities and types, and verify that the grey card peak is in the centre for most images.

Like I said, black magic.  But now you know. Bet you were not aware your meter was adjustable!



Metering muddles

Posted on by
2

A word about light meters again – this time, on how to use them.

1. First turn on the meter.

2. Then move the white dome out, not in.

3. Now set the ISO to your camera’s ISO (press ISO and hold it down while turning the dial, until your camera’s ISO is indicated).

4. Now set the metering mode. A modern light meter has two separate modes:

  • Ambient metering (the “sun” symbol at the top left on the display above);
  • Flash metering (the “lightning bolt” symbol on the display above).

If you want to meter available light for a normal available light photo, select the sun (press mode button and turn dial); but for metering flash, where the meter measures brief flashes of light, select the lightning bolt.

Assume for today’s post, that you only have flash light to worry about in your shot. So you set the mode to flash, and set the shutter speed to your camera’s shutter speed. Set the camera to 1/125th sec, and set the meter to this time as well.

Now when the camera measures, since you have told it your camera’s shutter and ISO, when it measures the light it will tell you the aperture to set the camera to. (After all, exposure is a triangle of “ISO – Aperture – Shutter”.)

5.  Now hold the meter where the subject will be, and aim the white dome at the camera.

6. Now press the big “reset/test” button on the side. The aperture now reads “0”.

7. Finally, fire your flash.

The meter now indicates the aperture you should set set your camera to. If this is different from what you wanted

  • adjust the flash’s power;
  • repeat the procedure, until the meter indicates the aperture you had in mind.

This is how you use a flash meter.

In future posts, more.

Speed lit

Posted on by
Reply

Since this blog is called “speedlighter”, and I kind of specialize in lighting, I thought I might do a quick post on quick lighting.

Today, I had a student shoot me, and her dog, using one studio light (a 400 Ws Bowens light). To do this you need to do the following:

  1. Set up a light on a stand;
  2. Add an umbrella;
  3. Shoot near a wall which acts as the reflector (that is why one light is enough!);
  4. Connect the light to the camera using, for example, a cable;
  5. A light meter to measure light and hence to help you set the flash’s power;
  6. Set your camera to f/8, 1/125th second, 100 or 200 ISO;
  7. Now meter to that (i.e. adjust the light until the meter read f/8).

The first test shot should be without flash, and should be black.

Then, connect the flash cable and shoot:

Michael Willems

Michael Willems

And then, after that test shot, the object of tonight’s shoot, which was not me, alas:

Duke Dog

Duke Dog

Cute, eh?

Note the simple composition, blurred background, the excellent composition and tilt (see Friday’s post), and note the catchlight from the umbrella in Duke’s eyes. (If we had shot through an umbrella, the catchlight would be even more simple, round).

Meter the light

Posted on by
6

You know how in 1970 photographers always used to use light meters?

Like this one, in a pic from the recent photo show:

Michael Willems holding a light meter

Michael Willems holding a light meter

Yes that is right: I am using a light meter. In 2010. And like most working photographers, I use one often.

Why?

Here’s why.

1. Type of meter. The light meter built into your camera is a reflective meter. It meters light that is reflected off the subject.  So if the subject is dark you might get a long exposure time (little light is reflected off it, so your camera sees little light), while if the subject is bright, you might get a short exposure time (a lot of light is reflected, so your camera sees a lot of light).

This means that the subject affects the metering. This is wrong. Think of a bride or a groom in a room. The bride would cause a fast shutter speed (see above), causing the room to be too dark, while conversely the groom would cause the room too bright. Clearly the subject’s brightness is absolute and should not cause the exposure to vary.

An incident light meter, and that is what hand held light meters are, measures the light falling onto the scene. The subject’s brightness has no effect at all. Problem solved!

2. Flash. The only way to meter a flash of light is by using  flash meter. You can use the histogram and a lot of trial and error, but that is just that: trial and error. A light meter gives you the right result.

So in a studio setting, or when using manual flash, you use a light meter. Now you turn it to “flash meter”. And again, guaranteed results.

And that is why we use them still. Like in this shot from this weekend’s show:

Bodypaint Model

Bodypaint Model
